Saleae Support
HomeDownloadUser ForumContact Us
  • Saleae Support
  • Orders & Shipping
    • Place an Online Order
    • Place a Purchase Order (PO)
    • Get a Quote
    • Check your Order Status
    • Distributors
    • Pricing and Availability
    • Discounts
    • Tax & VAT Exemption
    • Saleae Business Information
    • Shipping Policy
    • Receiving Invoices
    • Sales FAQ
      • What Is Included with the Product?
      • What Accessories Should I Purchase with My Device?
      • Is the Saleae Software Sold Separately?
      • Does Saleae Have a Trade-In or Upgrade Plan?
      • How Can I Find the Current Status of My Order?
      • Part Numbers, ECCN, HS Codes, and Country of Origin
      • Discontinued Products
      • International Customs and Duty Information
      • Does Saleae Offer Demo Units or Units on Loan?
      • When Is My Card Charged?
      • Unable to Ship to PO Box Error
      • Referred a Friend? Email Us!
      • Does Saleae Provide Drop-Shipping Service?
  • Getting Started
    • Setup
    • Configure
    • Record
    • Navigate
    • Measure
    • Trigger
    • Protocols
  • User Guide
    • Product Summary
    • Safety & Warranty
    • Supported Voltages
    • Device Calibration
    • Using Logic
      • Navigating the Software
      • Connecting the Logic Analyzer
      • Logic Accessories
      • Device Settings
      • Capture Modes
      • Navigating Your Data
      • Time Bar Settings
      • Measurements, Timing Markers & Notes
      • Capture & Preset File Management
      • Exporting Data
      • Delete Part of your Capture
      • Analyzers
      • Data Table & Terminal View
      • Color Themes
      • Demo Mode
      • Software Glitch Filter
      • Keyboard Shortcuts
      • Automatic Updates
      • Message Us Directly
  • Software
    • Supported Operating Systems
    • Download
    • Installation
    • Firmware Updates
    • Driver Install
    • Legacy Software
      • Logic 1.x Download (Deprecated)
      • Logic 1.x Installation (Deprecated)
      • Logic 1.x Changelog (Deprecated)
      • Logic 1.x User Guide (Deprecated)
  • Protocol Analyzers
    • Supported Protocols
    • Analyzer User Guides
      • Async Serial Analyzer - User Guide
        • Decode UART
        • Decode RS-232, RS-485, & RS-422
      • SPI Analyzer - User Guide
      • I2C Analyzer - User Guide
      • CAN Analyzer - User Guide
      • Simple Parallel Analyzer - User Guide
      • I2S / PCM Analyzer - User Guide
      • DMX-512 Analyzer - User Guide
      • SMBus Analyzer - User Guide
      • Decode Differential and High Voltage Data
  • Software Extensions
    • Extension Installation
    • Create and Use Extensions
    • High-Level Analyzer (HLA) Extensions
      • Shared High Level Analyzers (HLAs)
    • Measurement Extensions
      • Analog Measurement Extensions
      • Digital Measurement Extensions
    • Extension File Format
    • About Third-Party Extensions
    • Disabling Marketplace Extensions
    • Publish an Extension
    • HLA - Analyzer Frame Format
      • Async Serial - Frame Format
      • I2C - Frame Format
      • SPI - Frame Format
      • CAN - Frame Format
      • Manchester - Frame Format
      • 1-Wire - Frame Format
      • Async RGB LED - Frame Format
      • Simple Parallel - Frame Format
      • LIN - Frame Format
      • I2S - Frame Format
    • API Documentation
  • Automation & Analyzer SDK
    • Automation API - Logic 2
    • Automation API - Legacy Logic 1.x
    • Protocol Analyzer SDK
      • FrameV2 / HLA Support - Analyzer SDK
      • Rename a Custom Analyzer
    • More Information on our SDKs
      • Can I Access Raw Data in Real Time?
      • Migrate Code to the New Analyzer SDK
      • Sharing Custom Low-Level Analyzer (LLA) Code
      • VB.NET Support for Automation
  • Datasheets & Specifications
    • Datasheets
    • Logic Hardware Revisions
    • Logic Dimensions
    • Compliance Documents
  • Troubleshooting
    • Installation Errors
    • The Software Fails to Launch
    • The Software Crashes
    • Logic is Not Detected
    • Getting your Machine ID
    • Getting your Software Crash Logs
    • Getting the Console Output
    • Location of Your Config File
    • Error Message: ReadTimeout
    • The Captured Data Looks Incorrect
    • The Captured Data is Corrupted
    • A Protocol Analyzer Produces Unexpected Results
    • The 'Waiting for Trigger' Window Never Closes
    • Device USB VID and PID Information
    • Error Message: Out of Memory Exception Was Thrown
    • PC Performance Issues with Logic
    • Data Export Is Not Working
    • Error Message: A device was found, but the software was unable to access it
    • Trouble Downloading the Latest Software
    • Logic Does Not Connect over USB 3.0
    • Why Am I Seeing Spikes in the Digital Capture?
    • Logic Interferes with My Circuit Operation
    • The Add Analyzer Menu Is Not Displaying
    • Other Drivers Interfere with Logic's Operation
    • The Maximum Sample Rate is Not Selectable
    • The Digital and Analog Recording on the Same Channel Appear Different
    • Advanced USB Debugging for USB 3.0 Users with Linux Kernels 3.3 and Older
    • Saving or Loading Anything Crashes the Software
    • Error Message: The application was unable to start correctly (0xc0000005)
    • Memory Usage with Triggered Captures
    • The Cabinet File disk1.cab has an Invalid Digital Signature (Logic 1.x)
    • Software Crashes with Virtual Desktops
    • Pre-Trigger Buffer is Incomplete
    • Linux Shared Memory Crash
    • Missing Files: api-ms-win-crt-runtime-l1-1-0.dll or msvcp140.dll
    • Known Issues on OS X
    • A Measurement Appears Incorrect
    • All Known Issues
    • USB 3.0 Cable Customer Notice (2017)
    • Warning Message: Logic Pro is running as a USB 2.0 device
    • Software Issues with Encryption Products
    • Linux Permission Requirements for Logic Software
    • My Rise Time and Fall Time Measurements Seem Incorrect
    • The Analog Waveform Loads Very Slowly after Capture Is Complete
    • Input Channels are Missing
    • Exported MATLAB File Does Not Open
    • Saleae Logic LED Blinks Red
    • Crashes Caused by macOS Mojave (10.14)
    • Troubleshooting Signal Crosstalk
    • Error Message: DeviceSetupFailure
    • Error Message: Unable to detect WebGL and Other GPU Issues
    • Warning Message: Unsupported Version
    • Error Function: Device2::SetupDevice
    • Warning Message: Possible USB Host Controller Problem Detected
    • Error Message: StartCommandError
    • Logic 2 Error Messages
    • PC Detection Test
    • CentOS Compatibility Issues
    • Error Message: Failed to Load Extension
    • CSV Export is Slow
    • Set an Analyzer Starting Point in your Capture
    • Logic 2 is Consuming Disk Space
    • Connection Conflicts with USB Debuggers
    • PC Restart Causes Logic to Disconnect
    • HLA Fails to Display Special Characters
    • Data Table Shows Incorrect Values
    • Error Message: Failed to Load Custom Analyzer
    • Error Message: Capture Stopped
    • Error Loading Marketplace Extensions
    • Error: Capture stopped because backlog data exceeded 90%
    • This Analyzer's Native Export is Not Supported in Logic 2
    • Mouse Scrolling Issues
    • Error: A device was found, but it was removed before initialization completed
    • Error: An unknown error occurred during device connection
    • Visual Studio Error: Failed to Launch Debug Adapter
    • VS Code Fails to Launch Python Automation API Script
    • Analog Waveforms Do Not Appear on Linux
    • Reinstall USB Host Controller Drivers
  • FAQ
    • Technical FAQ
      • System Requirements for Saleae Products
      • What Is the Normal Behavior of the LED?
      • What Is the Difference between Logic/Logic16 (Gen1) and Logic 8/Pro 8/Pro 16 (Gen2)?
      • Recommended USB 3.0 Host Controller Cards
      • Device Settings Configuration Tips
      • What Is the Worst Case Channel to Channel Skew?
      • What is Asynchronous Sampling?
      • Which Saleae Products Can Decode 4-Bit Parallel LCD Communications?
      • How Can I Compare Two Clock Signals for Synchronization and Drift?
      • Converting I2S/PCM Captures into Audio
      • My Capture Shows an Uneven Duty Cycle
      • Can I Create or Edit .logicdata Files?
      • Can Saleae Logic Run on ARM / Apple Processors?
      • What Annotations Are Supported?
      • Time & Memory Saving Tools
      • How Can I Record Power Consumption?
      • Moving Logic to Its Own Host Controller
      • How Long Does It Take to Save a File?
      • XMonad on Linux Causes Issues
      • What Is the Maximum Bandwidth of Logic?
      • How Long Can I Record Data?
      • Can I Export Protocol Results Between Timing Markers?
      • Can I Generate an Analog Graph from Digital Data?
      • Time Measurement Error
      • Can These Products Replace an Oscilloscope?
      • Can I Use Multiple Logics on a Single PC?
      • Native Windowing Features Are Not Working Such as Snap or Gestures
      • Opening .logicdata Capture Files
      • How to Choose the Right Logic Analyzer for You
      • Saleae Open Source Support
      • How to Trigger the End of a Capture Instead of the Start
      • Using the Hardware with USB Extension Cables, Through Virtual Machines, or Ethernet Extenders
      • Are the Ground Pins Required for Each Input Used?
      • Can Saleae Products Output Data?
      • Resolution of the Analog Inputs
      • What Sampling Rate Should I Use?
      • Can I Share Data Captures with Others?
      • Binary Export Format (Digital) - Logic 1.x
      • MATLAB Data Export Format - Legacy Logic 1.x
      • Recording Multiple Protocols at the Same Time
      • Changing the Display Radix (Base)
      • Which Logic Analyzer Should I Get?
      • How to View and Debug Firmware Variables, State, and Function Calls
      • Using Saleae Logic Devices with Third-Party Pattern Generators
      • Can Logic Operate with a Full-Speed USB Isolator?
      • Which Saleae Devices Support Analog Recording?
      • How to Manage Protocol Analyzers when Using the Socket API
      • How to Export Serial Protocol Results to a Raw Binary File
      • How to Trigger On a Pulse with No Maximum Time Limit - Logic 1.x
      • Finding Your USB 3.0 Host Controller Information
      • Logic Reports Different USB Current Requirements
      • Is It Possible to Adjust the Logic Thresholds for the Digital Inputs?
      • Why Does Channel 0 Use a Black Wire?
      • Software Shows Multiple Logic Analyzers Attached
      • Are the Input Channels Isolated from Each Other?
      • Are There Feature Differences in the Software when Different Logic Analyzers Are Used?
      • Packet Level Decoding Support in the Analyzer SDK
      • What Higher-Level Protocol Analysis Features Are Available?
      • Support for USB 3.0 and USB 3.1
      • How Can I Compare Signals from Different Captures?
      • Do the Saleae Logic Analyzers Support Trigger Out?
      • Why is the Length of my Capture Incorrect?
      • The Options Button is Missing
      • Can I Change the Voltage Range of the Analog Inputs?
      • How Does the ASCII Radix Display Characters?
      • Do I Have a USB 3.0 Port?
      • What Is the Best Way to Compare Similar Sequences of Protocol Data?
      • Which Version of the Software Should I Use?
      • Import Custom Low Level Analyzer
      • OSX Analyzer SDK Xcode Setup
      • Can Custom Analyzers Process Analog Channels?
      • Automating Long Overnight Captures
      • What Options Are There to Export Multiple Protocol Analyzer Results into the Same File?
      • Do the Saleae Devices Support AC Coupling?
      • Suggestions for Capturing Multiple Instances of a Triggered Event Automatically
      • How Many Protocol Analyzers Can Be Used at Once?
      • Is It Possible to Run the Saleae Software on a PC without SSE2 Instructions?
      • Is It Possible to Import Data into the Logic Software?
      • How Do I Convert Exported CSV Analog Data in Voltages?
      • Is There Cross-Platform Support for the SaleaeSocketApi C# Project
      • Why Does Logic Get Warm?
      • Binary Export Format (Analog) - Logic 1.x
      • Electrical Isolation Suggestions
      • FCC and CE Testing Recommendations
      • 'Save Capture' and 'Export Data' is Disabled in the Software
      • File Format Description for Exporting Protocol Analyzer Results
      • Is There a Newer Version of the Software Available?
      • Is There a Way to Change the Window Resolution?
      • How Can I Extract Recorded Data Using Socket API?
      • Does the Software Support Windows 10 Tablets or Windows RT Tablets?
      • Standalone Software Information
      • Does the Saleae Software Support the Original Logic and Logic 16?
      • Timing Markers Disappear When I Start a New Capture
      • What Sample Rate Settings Are Available? Can I Sample at a Slower Rate?
      • How Do I Differentiate Data in the Export File when Duplicate Analyzers Are Used?
      • Running Multiple Versions of the Software
      • Test Clip Differences - Gen 1 & Gen 2
      • USB-C Cable Recommendations
      • Is My Capture Data Private?
      • Ethernet Connectivity Suggestions
      • Binary Export Format - Logic 2
      • Viewing I2C Addresses as 8-bit
      • Can I use Python Packages in my Custom Extension?
      • Are the Inputs Synchronously Sampled or Sweep Sampled?
      • Is Logic Affected by the Log4j Exploit?
      • Connecting Remotely with SSH
      • Is Silent Installation Supported?
      • Is the .sal File Format Documented?
      • Export Data via Socket API
      • Running Logic in a CI Environment on Windows with the SYSTEM Account
    • General FAQ
      • How Do I Get More Help on an Issue That's Outside the Scope of Saleae Support?
      • How to Identify Each Saleae Device
      • License for the Saleae Logic Software, SDKs, and APIs
      • How Do You Pronounce Saleae?
      • How to Create Project Content for Saleae
  • Returns & Warranty
    • Submit a Warranty Claim
  • Community
    • Ideas & Feedback
    • User Forum
    • Community Projects
    • Community Created Accessories
    • Community Shared Analyzers
  • Tutorials
    • Oscilloscope Tutorial
    • Logic Analyzer Tutorial
    • Learning Portal
      • Digital Protocols
        • Learn Asynchronous Serial
        • Learn I2C - Inter-Integrated Circuit
        • Learn SPI - Serial Peripheral Interface
        • Learn CAN – Controller Area Network
        • Digital MultipleX (DMX512)
        • Manchester
        • 1-Wire
        • Learn I2S / PCM
        • Management Data Input/Output (MDIO)
        • BiSS C
        • HDMI Consumer Electronics Control (CEC)
        • PS/2 Keyboard/Mouse
        • Universal Serial Bus (USB) 2.0
        • Single-Wire Interface (SWI)
        • Simple Parallel
        • Local Interconnect Network (LIN)
        • Joint Test Action Group (JTAG)
      • Common Acronyms and Definitions
      • What is a Glitch?
      • What is RAM? Why Does Logic Use it?
      • What is a Display Radix?
      • What is Data Bandwidth? Can I Reduce this in Logic?
    • Example Projects
      • STM32 Nucleo Board - Digital Signals
      • STM32 Nucleo Board - Analog Signals
      • STM32 Nucleo Board - Analyzing UART
      • STM32 Nucleo Board - Analyzing SPI
      • STM32 Nucleo Board - Analyzing I2C
Powered by GitBook
On this page
  • Data Table
  • Overview
  • Excluding Analyzers and Columns
  • Show/Hide Columns
  • Jumping to a Waveform Bubble from the Data Table
  • Jumping to a Data Table Row from the Waveform
  • Display Radix Information
  • Other Notes about the Data Table
  • Limitations of the Data Table
  • Terminal View
  • Limitations of Terminal View
Edit on GitHub
Export as PDF
  1. User Guide
  2. Using Logic

Data Table & Terminal View

PreviousAnalyzersNextColor Themes

Last updated 1 year ago

Data Table

Overview

The analyzer data table shows all decoded protocol data in a table format. In general, the search functionality allows you to search for content in any column, except for the 'Start' and 'Duration' columns.

To learn more about the different columns that are used for Saleae's built-in analyzers, please refer to the support article below.

Excluding Analyzers and Columns

By clicking the 3 dots to the right of the search bar, a few options become available.

  • Analyzers can be added or removed to exclude certain analyzers from search results and from appearing in the Data Table.

  • The ability to exclude columns from search become available (while keeping them visible in the Data Table). This is useful for excluding columns that may otherwise pollute your search results, such as the 'Type' column, or boolean columns like 'ack' or 'read'.

Show/Hide Columns

The ability to hide columns altogether is available by right clicking the column label in the Data Table.

This also excludes them from the search results and is useful when there are too many columns to comfortably display.

Jumping to a Waveform Bubble from the Data Table

You can jump to a specific decoded bubble above the waveform from the data table by hovering your mouse over the data table row of interest. An "arrow" icon will appear to the right of the data table row while hovering over it. Click on the "arrow" icon to have the waveform view jump to the appropriate waveform bubble of interest.

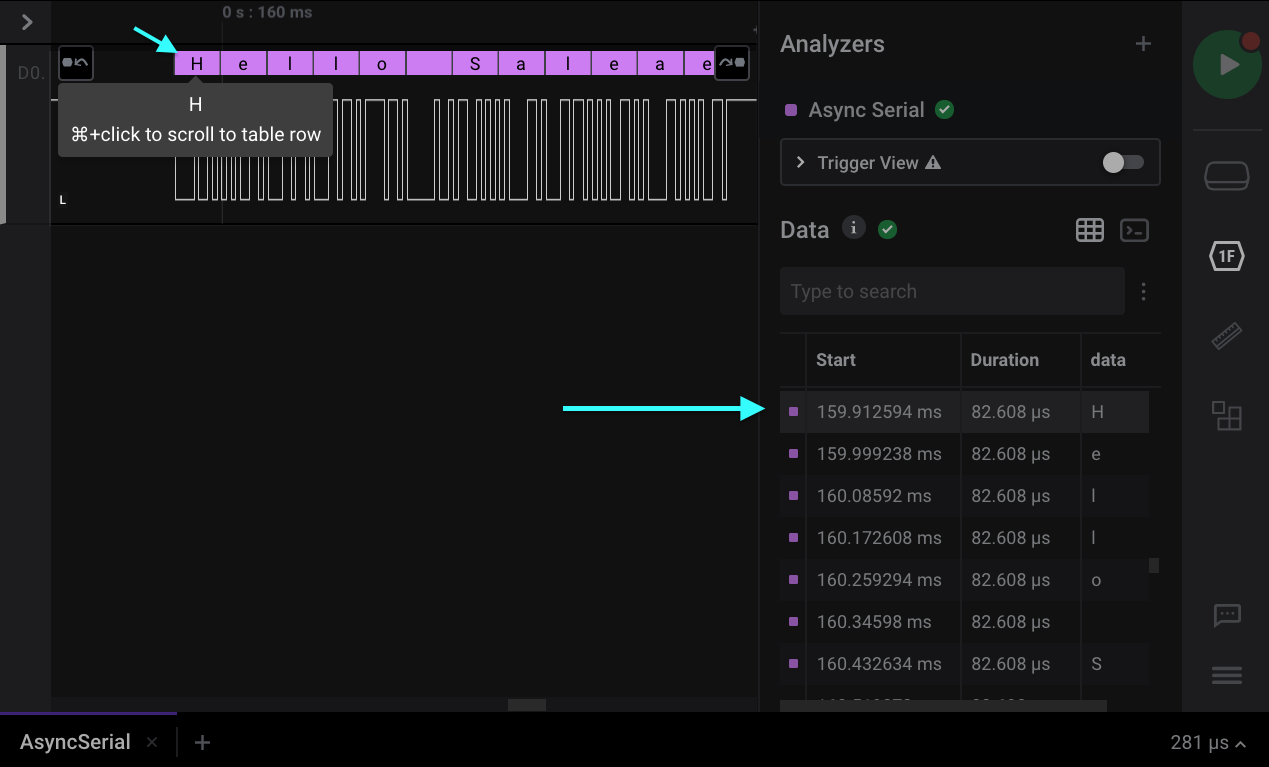

Jumping to a Data Table Row from the Waveform

You can jump to a specific row in the data table by hovering your mouse over a decoded bubble above the waveform as shown in the image below. A keyboard shortcut (OS-specific) will appear to allow you to perform this action.

Display Radix Information

The new data table has a few different column types:

  • Integer

  • Double precision floating point

  • Boolean

  • String

  • Byte array

Once an analyzer has been added, the user can change the display radix for that analyzer by right-clicking it in the analyzers panel in the sidebar.

The data table respects the users selected display radix. The display radix options are hexadecimal, ASCII, decimal, and binary. However, not all data types support each radix.

This list explains the supported radix of each data type.

Column Data Type

Example Value

Hex

ASCII

Decimal

Binary

Integer

42

0x000000000000002A

42

42

0b0000000000000000000000000000000000000000000000000000000000101010

Float

3.14159

3.14159

3.14159

3.14159

3.14159

Boolean

true

true

true

true

true

String

"hello world"

hello world

hello world

hello world

hello world

Byte Array

[0x48, 0x69, 0x0]

0x486900

Hi\0

72 105 0

0b1001000110100100000000

Other Notes about the Data Table

  • The data table respects your display radix selection for each analyzer, including high-level analyzers.

  • When searching, matching cells will be highlighted, and the matching section of the contents will also be highlighted.

Limitations of the Data Table

Scrollbar Limitations

Currently, the contents of the data table are loaded dynamically depending on which section of the data table is currently in view. This approach has some drawbacks which are especially noticeable when navigating the data table with the scrollbar.

For example, dragging the scrollbar to the bottom will not immediately jump you to the end of the data table. Instead, new data table rows will be loaded dynamically, and the scrollbar position and size will adjust accordingly. Therefore, the scrollbar will not be scaled correctly with reference to the total count of data table rows.

Workarounds:

  • The End and Home keys can be used to instantly jump to the end or beginning of the data table respectively.

  • You can jump directly to a data table row from the waveform. Details on this are described in a section of this support article above.

Search Limitations

In most cases, you should be able to search for what you see in the table, just as you would search any other document, spreadsheet, or website. However, in order to improve performance of the search functionality, the search function has a few limitations.

Limitations:

  • The 'Start' and 'Duration' columns can't be searched.

  • when searching data shown in hexadecimal or binary, searching for a hex or binary number starting with '0x' or '0b' will force the search to match the beginning of the number. However, searching for '0', 'x', or '0x' by itself will not match the hex or binary prefix. This is a departure from the normal "search for what you see" functionality, but will eliminate accidental searches which may match with all rows of an analyzer.

  • when searching a byte array data type (like MISO, MOSI, and many other analyzer result types) that are displayed in the ASCII display radix, you may see dot characters ('.') in positions where the data isn't a displayable ASCII character. These characters cannot be searched for. Only ASCII characters can be searched. For example, if a cell displays 'ab...yz' you can search for 'a', 'b', 'ab', 'y', 'z', and 'yz' to match it, but you can't search for 'ab...yz' because the dot ('.') characters are unmatchable.

The Data Table May Show Incorrect Values

When using low level analyzers (LLAs) such as our Async Serial or SPI analyzer, you may notice issues with how values appear in the data table, specifically while viewing results in decimal format. More information on this can be found in the support article below.

Terminal View

A terminal view is available by clicking the "Terminal" button at the top-right of the data table. This allows you to view your data in a terminal-like display format.

Limitations of Terminal View

Terminal Output is not in Time Order

Scroll-back Limit

Our in-app terminal view has a scroll-back limit of 10,000 rows. Once the 10,000 row limit is reached, the oldest rows are deleted. However, starting version 2.4.4, we added an experimental environment variable override to specify longer terminal scrollback limits.

  • set SALEAE_SCROLLBACK_LIMIT=1000000 for Windows

  • export SALEAE_SCROLLBACK_LIMIT=1000000 for MacOS and Linux

Radix Display within the Terminal

  • Async Serial & Manchester - will always attempt to display in ASCII format. If the ASCII opcode doesn't exist, then it will be displayed in hex, separated by backslashes (\) as shown below. Notice that the first set of opcodes (0 to 0x1F) do not exist and are therefore displayed as hex. As the opcode increments and become valid, ASCII characters are displayed.

  • I2C - will display addresses and data, as well as read/write status, as shown below.

  • SPI - will display in hex in the format MOSI / MISO .

  • For all other analyzers - content will be displayed as shown in the data table.

Terminal RefIow issue when Panel is Resized

This only affects the last line in the terminal, and is noticeable when resizing the side panel.

For Async Serial - The last line will not text wrap properly. The last line is considered as the final stretch of data preceded by a new line or carraige return. For I2C or SPI - the last line is considered after the end of a previous transaction, and will not properly reflow when the side panel is resized. SPI data looks like it completely disappears.

We use xtermjs for our in-app terminal. According to the xtermjs GitHub issue link below, this seems to be a bug that only affects the last line of text.

Terminal Text Seems to be Missing

Our intention was for the terminal to respond appropriately to '\r' (CR, carriage return) and '\n' (LF, line feed) when encountered in the serial analyzer data, to help make the terminal work like a serial terminal. Having said that, serial data that only outputs '\r', but not '\n', will cause terminal text to get deleted since the missing '\n' is not moving the cursor one line forward.

To work around this in the meantime, we have released an extension via our Extensions Marketplace called "Carriage Return to Line Feed Converter."

In case this is something you'd like us to improve, please vote for !

In general, the search system is case-insensitive. If you would like to use case-sensitive search, please support .

Currently, our terminal view does not output results in time order if more than one analyzer is outputting data to the terminal. Instead, our terminal view will group the output results by analyzer. We've received requests for adding support for ensuring time order when using multple analyzers. Please feel free to share your feedback on this in the feature request post here:

If you're running into this issue, please vote/comment on our , which we are using to track this bug.
